2017 FM Broadcast DX This Season

Fun year with a $17 SDR and an old antenna, plus an old Desktop.
I am having so much fun, I was ignoring 6-Meters.
RTL-SDR fed with a 44-year old Radio Shack Archer V/U/FM-125 Log Periodic (minus UHF Elements)
WIN7 Dell Desktop, SDRSharp Software
All Dates/Times UTC (AZT/PDT/MST Local -7 Hours)

92.1 KCOL Grove (Beaumont) TX 5/25
92.1 KTSR DeQuincy LA 5/25
92.3 KIIZ Killeen TX 5/25
92.5 KVPI Ville Platte LA 5/25
94.1 KQXY Beaumont TX 5/25
90.1 KPFT Houston TX 1700 5/26 Pacifica Radio
92.1 KMFC MO Centralia 1804 06/17 RDS ID AJJ-AZ
93.3 KMXV MO Kansas City 1808 06/17 RDS and regular ID AJJ-AZ
92.5 KJJY IA W.DesMoines 1840 06/17 RDS, ID and commercials. Very strong at times.AJJ-AZ
92.3 KEZO NE Omaha 1847 06/17 RDS, Commercials AJJ-AZ
92.1 KRLS IA Knoxville 1858 06/17 RDS AJJ-AZ
93.3 KIOA IA DesMoines 1902 06/17 RDS, commercials and awful 70's music (like Disco) AJJ-AZ
95.5 KGLI IA Sioux City 1917 06/17 Commercials referring Sioux City AJJ-AZ
94.9 WDKB IL DeKalb 1920 06/17 Assumed. Many commercials/events for Chicago IL AJJ-AZ
94.1 WEMX Kentwood (Baton Rouge) LA 2216 6/25 RDS Hip-Hop AJJ-AZ
92.1 KDQN Dequeen AR 2240 6/25 Local Commercial AJJ-AZ
92.5 KVLR Sunset Valley TX 2246 6/25 Another overpowered K-Love AJJ-AZ
93.7 KQBT Houston TX 2248 6/25 Local Commerical Bicycles AJJ-AZ
93.3 KKSP Little Rock AR 2326 6/25 The Fish RDS AJJ-AZ
92.5 KPPL Poplar Bluff MO 2330 6/25 St. Louis Cardinals Radio AJJ-AZ
92.1 KTBT Broken Arrow OK 1541 6/26 RDS ID AJJ-AZ
93.3 KIGL Seligman MO ..not AZ 1543 6/26 RDS, commerial AJJ-AZ
94.7 KTTS Springfield MO 1549 6/26 Very strong RDS over local Jack-FM AJJ-AZ
95.3 KINZ Humboldt KS 1551 6/26 ID as Z95-3 AJJ-AZ
94.9 KCMO Shaunee KS 1603 Very Strong RDS Old adult contemporary.AJJ-AZ
92.5 KTWB Sioux Falls SD 1749 6/26 RDS C/W music. AJJ-AZ
92.1 KORN Parkston SD 1756 6/26 Korn Country ID AJJ-AZ
93.7 KBRK Brookings SD 1808 6/26 RDS Adult contemporary AJJ-AZ
93.3 KJRV Wessington Springs SD 1812 6/26 Big Jim FM Classic rock Verified by Live Stream AJJ-AZ
93.1 KTYL Tyler TX 1650 6/30 ID East Texas' Mix 93.1 AJJ-AZ
92.1 KLIL Moreauville LA 1700 6/30 Local Ads AJJ-AZ
92.9 KTKC Springhill LA 1717 6/30 RDS AJJ-AZ
92.7 KISY Blossom TX 1720 6/30 Kiss FM Local commercials AJJ-AZ
92.1 KFXI Marlow OK 1729 6/30 RDS Foxy 92 Shortest Distance 809 miles AJJ-AZ
92.1 KDQN Dequeen AR 1732 6/30 Mixing with Foxy AJJ-AZ
93.3 KIGL Seligman MO 1739 6/30 RDS AJJ-AZ
93.3 KKSP Bryant AR 1740 6/30 RDS The Fish AJJ-AZ
105.1 KMJX Conway AR 1745 6/30 RDS The Wolf AJJ-AZ
105.7 KLAZ Hot Springs AR 1747 6/30 ID and commercial AJJ-AZ
106.1 KTGX Owasso OK 1755 6/30 ID The Twister AJJ-AZ
105.1 KOMG Williard MO 1759 6/30 RDS AJJ-AZ
106.3 KGOU Norman OK 1810 6/30 RDS NPR AJJ-AZ
106.3 KJBX Cash AR 1813 6/30 RDS ID Mix 106.3 AJJ-AZ
107.1 KCNY Greenbrier AR 1816 6/30 RDS AJJ-AZ
107.9 KEZA Fayetteville AR 1826 6/30 RDS and ID AJJ-AZ
107.5 KFEB Campbell MO 1839 6/30 Local commercials Longest distance 1,263 miles AJJ-AZ
107.5 KOSN Ketchum OK 1840 6/30 NPR Rebroadcast of KOSU AJJ-AZ
107.7 KSLZ St. Louis MO 1930+ 6/30 RDS Z107.7 AJJ-AZ
93.3 KPWK Seattle WA 2112 6/30 RDS AJJ-AZ
93.7 CJJR Vancouver BC 2115 6/30 RDS JR-FM AJJ-AZ
94.1 KMPS Seattle WA 2119 6/30 RDS AJJ-AZ
106.5 KWPZ Lynden WA 2123 6/30 RDS ID Praise 106.5 AJJ-AZ
106.5 KEGX Richland WA 2128 6/30 RDS Eagle 106.5 AJJ-AZ
94.7 KZAL Manson WA 2146 6/30 Local Commercials AJJ-AZ
94.9 KUOW Seattle WA 2149 6/30 ID NPR AJJ-AZ
104.1 KAFE Bellingham WA 2240 6/30 Local commercial AJJ-AZ
93.7 KSD St. Louis MO 0104 7/01 ID The Bull AJJ-AZ
92.5 KTWB Sioux Falls SD 0123 7/01 ID AJJ-AZ
99.9 KTCS Ft. Smith AR 0152 7/01 ID Country Lovin' AJJ-AZ
100.3 KDJE Jacksonville AR 0156 7/01 ID  AJJ-AZ
103.7 KYLK Okemah OK 0211 7/01 RDS ID K-Love AJJ-AZ
103.7 KABZ Little Rock AR 0215 7/01 ID The Buzz AJJ-AZ
93.3 CKSQ Stettler AB 0252 7/01 RDS ID Real Country AJJ-AZ
92.7 KVCK Wolf Point MT 0303 7/01 ID AJJ-AZ
94.1 CIMG Swift Current SK 0314 7/01 ID Local commercial AJJ-AZ

FMBC Es took about a month off and returned in earnest on 7/28 for 3 days off and on.
94.1  KRNA Iowa City IA 1955 7/28 Local commercial Tnx BRinAZ AJJ-AZ
93.5  KMYK Osage Beach MO 1807 7/30 ID Online Playlist 93 5 Rocks AJJ-AZ
92.9  KOSP Osark MO 1822 7/30 Local commercials AJJ-AZ
93.1  KZLE Batesville AR 1825 7/30 ID AJJ-AZ
94.7  KTTS Springfield MO 1833 7/30 RDS Country AJJ-AZ
93.3  KRKL Walla Walla WA 1900 7/30 ID RDS K-Love AJJ-AZ
94.9  KIOK Richland WA 1913 7/30 RDS The Wolf AJJ-AZ
93.7  KQFM Hermiston OR 1923 7/30 Local commercial @ 5KW AJJ-AZ
92.3  KIZN Boise ID 1933 7/30 ID RDS Local commercials Kissin' Country AJJ-AZ
92.1  KUMA Pilot Rock OR 1940 7/30 ID 92.1 Party FM AJJ-AZ
93.1  KTIK New Plymouth ID 2000 7/30 ID RDS The Ticket AJJ-AZ
92.1  KCRK Colville WA 2004 7/30 RDS Mariners Baseball AJJ-AZ
94.5  KHTQ Hayden ID 2012 7/30 ID RDS Commercials for Spokane WA Rock 94 1/2 AJJ-AZ
93.5  XHQC Saltillo COAH 1732 8/04 RDS PICode Stereo Saltillo AJJ-AZ

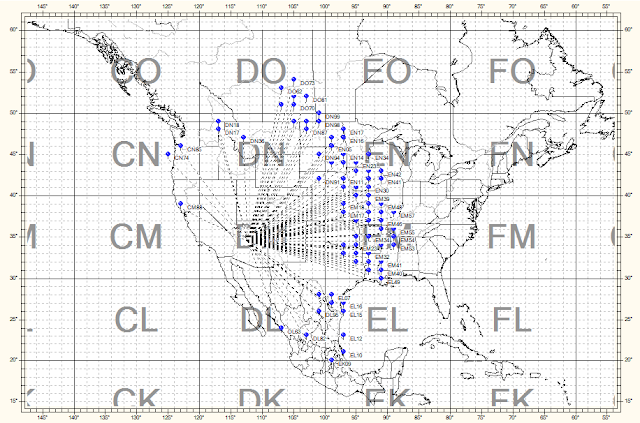

Map of my FMBC Es as of August 9 this season.

SDR Sharp screen prints on prior post.
73 Art

Saturday, June 17, 2017

Having Fun Even If 2-Meters Won't Open

Good afternoon,
Unfortunately due to personal issues, I was unable to play in the ARRL June VHF Contest.
So I am trying to make up for lost time and play a little this weekend (June 17 & 18).

Since analog TV is a thing of the past, I am now relying om FM Broadcast DXing to determine that Es are building towards 2 Meters.
I didn't want to spend the bucks on a HD FM Receiver that had RDS capabilities, nor did I want to run out to the car that had RDS.

Last August just as the season was ending I purchased for 17 bucks a RTL-SDR. I plugged it into a WIN7 computer and one of 2 outdoor FM antennas.
This is fun !!!!!

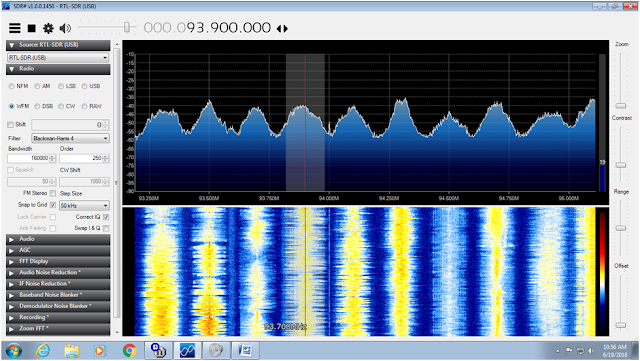

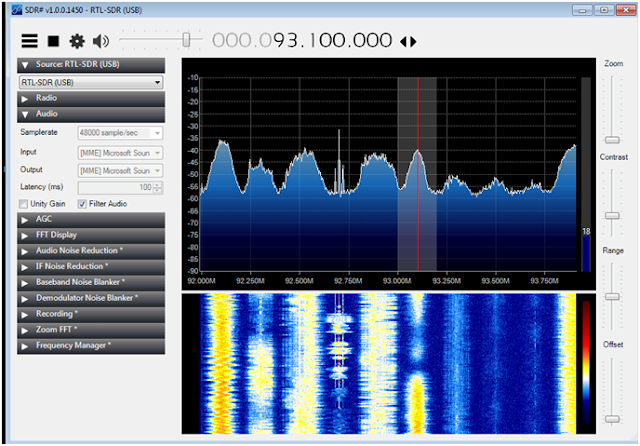

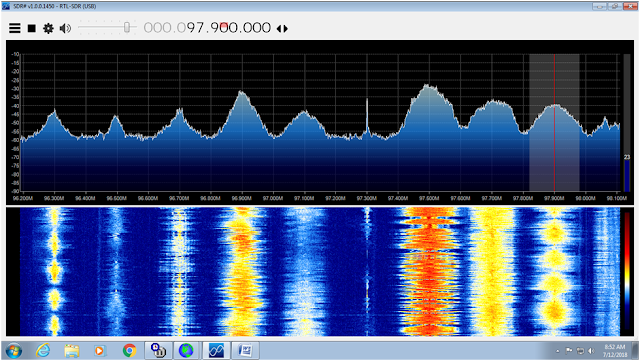

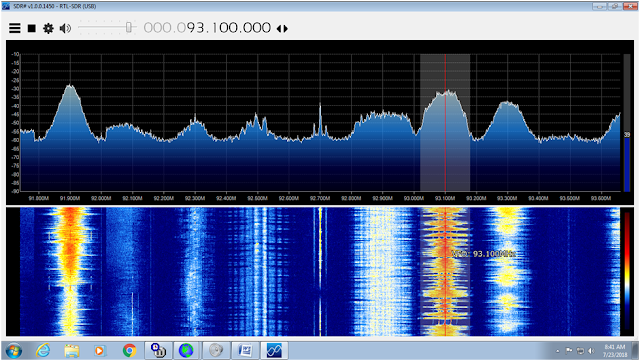

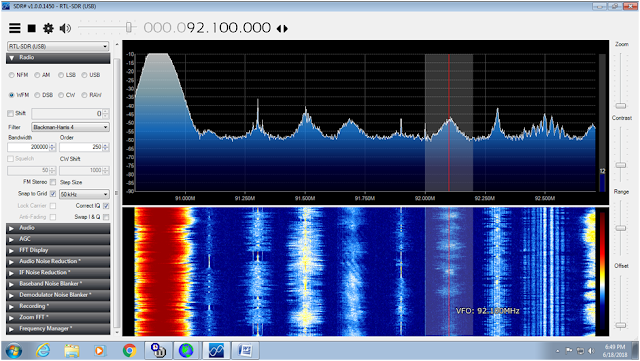

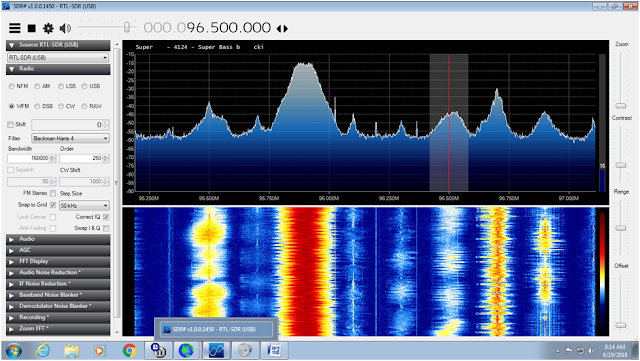

Some screen prints of what Es openings look like.
Most of the stations are from Iowa, Nebraska and one Illinois.  Patiently wait for a build up and a RDS ID appears, or listen for the Call or local Ads.

Enjoy Art KA5DWI/7 DM34 Central AZ

 92.5 and 92.9 are semi-local. 92.5 is easily overwhelmed by another station on Es.
 As Es build, it lights up like a Xmas Tree.

 KIOA Des Moines IA was booming in with awful 70's music.

93.9 & 95.1 are semi-local. This 94.9 MHz station was running ads for Chicago IL. We think DeKalb WDKB. No RDS.

June 25 Update:

Another nice opening. Many occasions of stations battling for a frequency. It made it harder to ID, but lots of fun.

Big Day June 30:
The Independence Day Holiday is always known to be a great period for VHF Es Propagation (lots of Tropo too). Friday morning, afternoon and evening did not disappoint.
I have been having fun monitoring and working Sporadic Es from High-end HF, VHF, FM Broadcast, Old Analog TV Channels 2-7 and the 2-Meter Ham Band.
When I lived near Fort Worth, Texas, I worked on 2 Meter SSB (144 MHz), South Florida, New Hampshire, along the Canadian/U.S. border, Oregon and down to Baja California.  I have had the pleasure of experiencing many fabulous events. Friday was one of those special days. I strongly believed that it was enhanced by the arrival of a solar disturbance. Before it hit, we had some outstanding conditions. Here in Arizona, I did make a few contacts to Oregon, Washington and Oklahoma on 2-Meter SSB, but I had the best time logging FM Broadcast stations. I never had the experience doing this and it was lots of fun.

36 FM Broadcast Stations Logged.
Logged Oklahoma, Arkansas, Missouri, Texas, Washington, British Columbia, Washington, South Dakota, Alberta, Montana and Saskatchewan.
Average Distance: 1063 miles, Median Distance: 1052 miles, Longest: 1263 miles, Shortest: 809 miles.

First time I had seen intense Es at the High End.

Highly intense Es.
I did work 2 Meter SSB to Washington, Oregon and Oklahoma.

73 Art KA5DWI/7

Sunday, June 4, 2017

Es Off to a Much Better Start in 2017 -Summer Solstice Update

The data displayed below was extracted from the PropNET database. It has been filtered to contain information pertinent to this analysis. It contains only North American participants of PropNET for the 10 Meter Ham Band on the dates noted.

Hi all,

Since last year's total Es activity was so poor, I thought I would see how this season had changed.
So far I am very pleased. There has been one noted 2 Meter opening also.
So how much different?
3 Times more activity in 2017 than in 2016.

Daily Activity:

2016 had 2 occasions of extended periods of low activity.
In 2017, by the first week in May the rate of  activity increase was higher each successive day.

Es Season started off very late in 2016
Es Season slowly progressed throughout the season in 2017.
Hourly Activity:
The daily hourly activity trends have changed very little between years although for 2017 high volumes and much better afternoon activity.

Everything indicates a much much better season. It is half over and we have many more great weeks to come. Stay active through mid August.
Make noise.

73 Art Jackson KA5DWI/7
